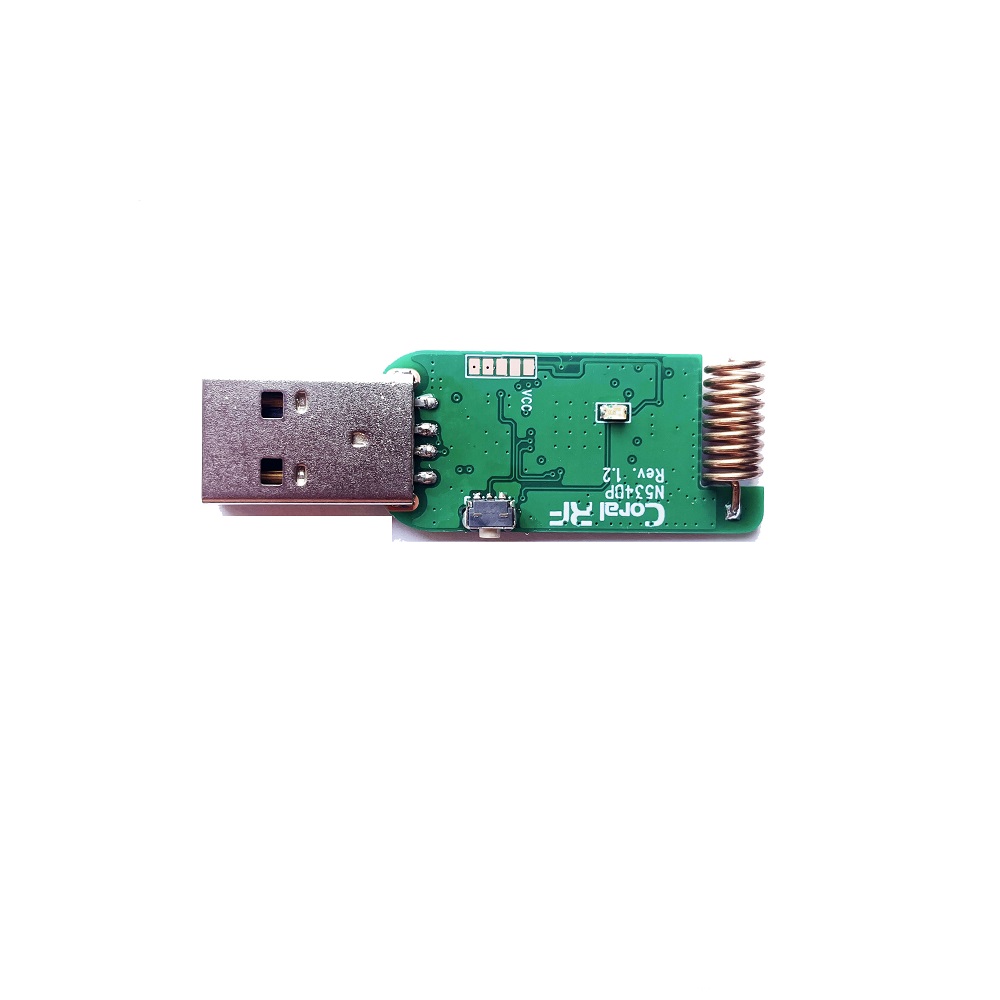

Radio dongle based CC1310, designed for sub 1G Dongle.
N534AP FSK radio dongle suitable for 433M, 868MHz, 915MHz band.

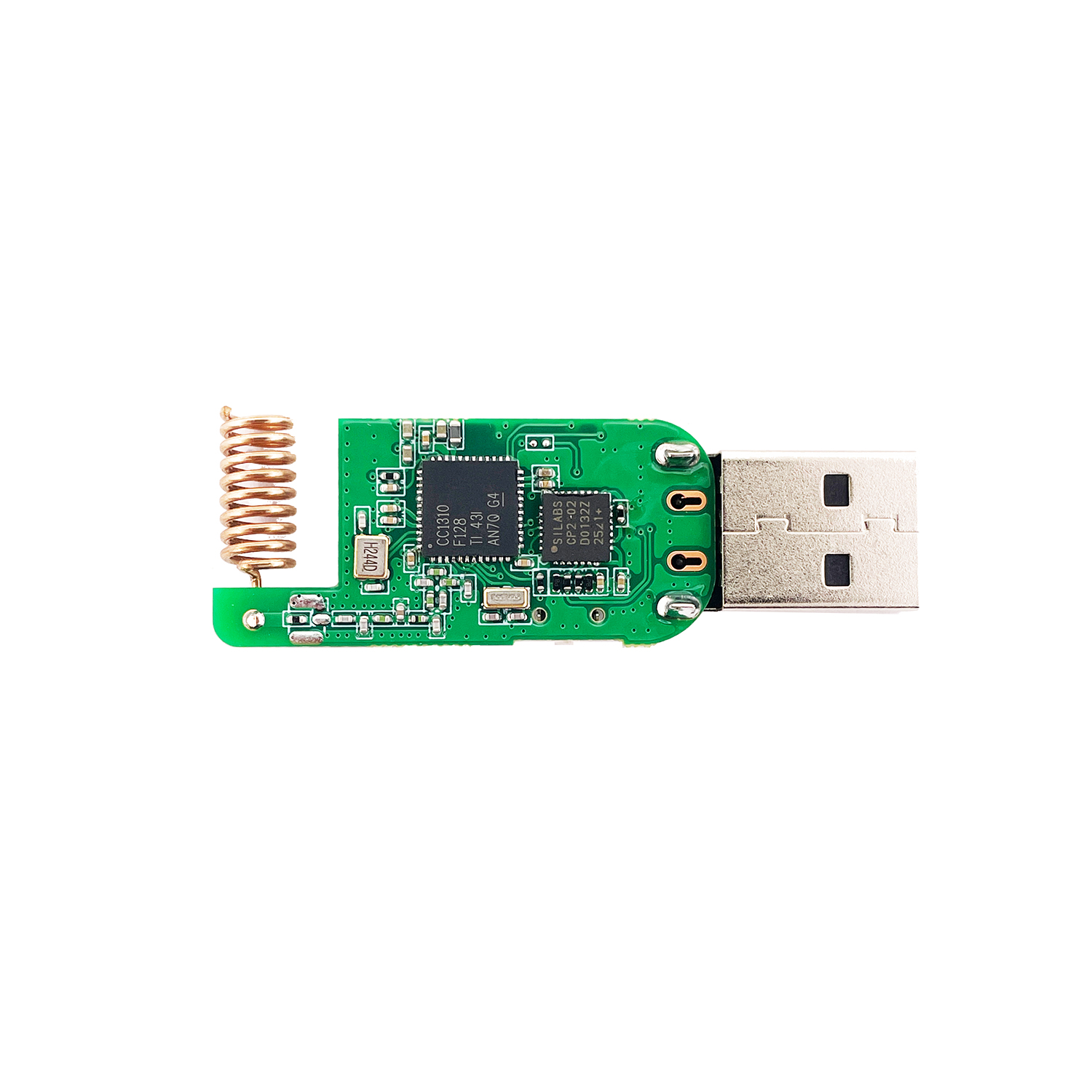

N534AP FSK radio dongle integrated TI CC1310 and USB to uart chip, which is suitable for 433M, 915MHz and 868MHz band. CC1310 dongle has the characteristics of low cost, low power consumption and small size. The module is designed with 4-layer board, with excellent impedance matching and anti-interference. The module is mainly for Internet of things, intelligent home, wireless meter reading, scientific research and medical treatment, and medium and long-distance wireless communication equipment. CC1310 dongle leads all pins out for secondary development.
N534AP (CC1310) dongle is suitable for free frequency band in EU and America.
Dongle Interface
Parameter
Introduce
Frequency
433M, 868M, 915MHz
Support ISM
Output Power
+14 dBm
The maximum power 25mW
Sensitivity
-110 dBm
50kbps
Symbol Rate
0.3-4000 kbps
Software programming control
Deviation
+/-1 kHz
TCXO
Shell Size
45 x 19 x 8mm
Shell Color optional
Size
37 x 17 x 7mm
-
Antenna Interface
IPEX, spring antenna
-
Communication Interface
USB 2.0
-
Package
USB
-
Volt
5V±0.25V
-
Emission Current
30mA
-
Receiving Current
15mA
-
Working Temperature
-30℃--+75℃
-
Distance
1000 m
In clear and open environment, the antenna gain
is 3 dBi, the height above the ground is 2.5 meters,
and the air speed is 1.2 kbps.
N534AP Dongle Programming
The schematic diagram of the module base plate can be obtained from our official website.
