Radio mdoule based TI CC1310, PA and LNA.

N533AS high power CC1310 module designed for 433M, 868M and 915 MHz band. Up to +30 dBm output power,   down to -126 dBm sensitivity.

N533AS high power cc1310 module integrated TI CC1310F128 chip, high power PA and LNA, suitable for 433M, 868M and 915MHz band. The maximum output power of the module is 30 dBm(+3.6V). support loRa and FSK modulation.

N533AS module up to 30dBm output power and down to -112dBm sensitivity( 50 Kbps). SPI port, RF pin or IPEX optional, SMD package, small size. The module is designed with 4-layer board, with excellent impedance matching and anti-interference. The module is mainly for internet of things, intelligent home, wireless meter reading, scientific research and medical treatment, and medium and long-distance wireless communication equipment.

N533AS module leads most pins out of CC1310F128RGZ for secondary development. AT commands support.

The module available frequence is from 410 to 960 Mhz,The hardware is designed for maximum range, 10000m + Range (Line of Sight).

N533AS (CC1310) is suitable for free frequency band in EU and USA.

The module uart maximum rate: 115200 bps.

Module Support Wireless protocols

IEEE 802.15.4g, IPv6-enabled smart objects (6LoWPAN), MIOTY®, Wireless M-Bus, WiSUN®, KNX RF, Amazon Sidewalk, proprietary systems, SimpleLink™ TI 15.4 stack (Sub-1 GHz), and dynamic multiprotocol manager (DMM)driver.

Application Area

• Sub 1G ISM System

• Smart water meter, Gas meter

• Street light solutiion

• 6lowpan system

• Edge routing

• 6lowpan Gateway

• FSK frequency band system

• WMBUS, Wi-SUN, WB-DSSS, Sigfox

• Simplelink Long Range

ISM Frequency supported by N533AS module

433M band: 433 MHz to 435 MHz (China, EU)

470M band: 470 MHz to 510 MHz (China)

779M band: 770 MHz to 780 MHz (China)

868M band: 868 MHz to 870 MHz (China, EU, USA)

                       888 MHz to 889 MHz (Australia)

915M band: 902 MHz to 928 MHz (USA)

Ordering information

N533AS-433M     CC1310+PA             30dbm, 410Mhz-440Mhz

N533AS-490M     CC1310+PA             30dbm, 470Mhz-510Mhz

N533AS-868M     CC1310+PA             30dbm, 860Mhz-880Mhz

N533AS-915M     CC1310+PA             30dbm, 910Mhz-930Mhz

Test method of N533AS module

Take the supporting base plate of Coral Radio technology as an example:

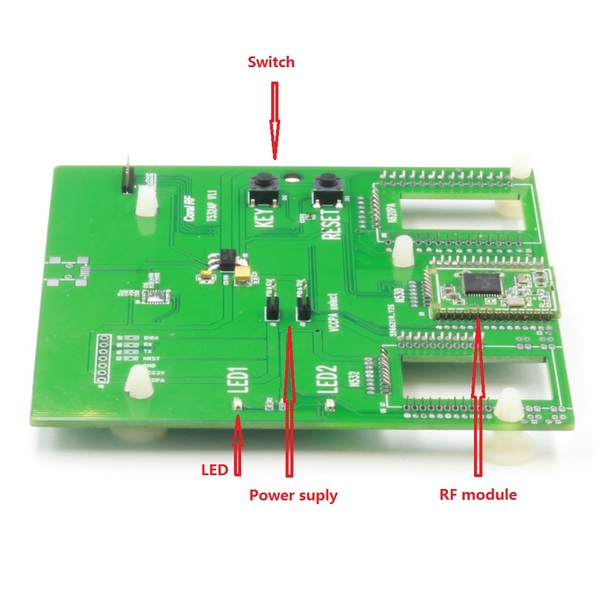

The bottom board of N533AS is T532AP, which integrates USB to serial chip, led, button, burning port and module card port. As shown in the figure:

Range test of N533AS module

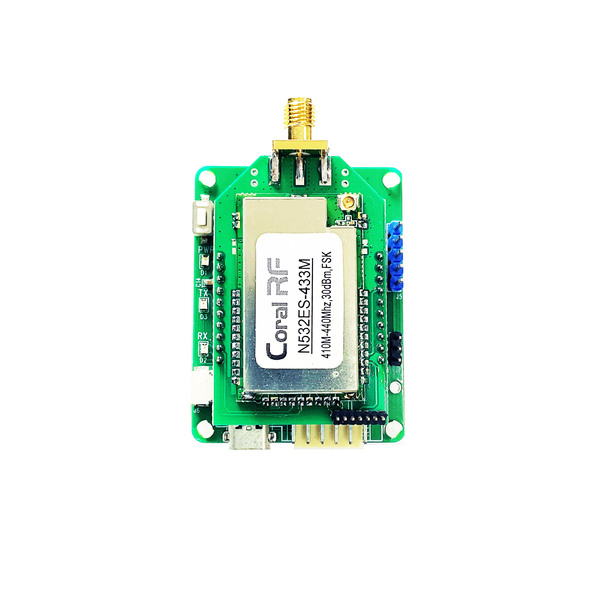

N533AS distance test adopts the USB to serial port module shown in the figure below:

The board is composed of USB to serial port backplane, module and antenna. It is connected with the computer through USB cable to send and receive test data and distance.

N533AS module secondary development method

The CC1310 module is stuck on the backplane as shown in the figure, and the IPEX is connected with the antenna. The burning port is connected with xds110 according to the silk screen printing, and then online simulation can be carried out to test the performance of the module.

Module Programming

The schematic diagram of the module base plate can be obtained from our official website.

Please contact us for specific programming information or download it from TI official website www.ti.com.

AT command

The default setting of the module is the wireless serial port code, support at commmand.

If need to use our code directly, please contact us for usage methods.

Files download

N533AS Software code example‍            Download N533AS datasheet
