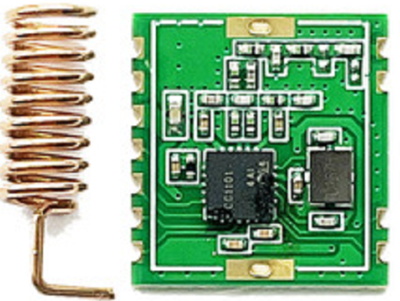

N503AS, CC1101 Module, 12dBm

CC1101 Module, +12dBm, N503AS

Frequency : 433M, 868M, 915 MHz
Output Power : +12 dBm
Port : SPI
Size : 17x16x3mm
Brand : Coral RF
Modulation : FSK
Package : SMD
Model : N503AS
Price :
$3.50
Details

CC1101 module

Pin   Number

function

Describe

1

GND


2

GND


3

VDD

1.8V to 3.6V

4

MOSI

SPI

5

CLK

SPI

6

MISO

SPI

7

GDO2

Connected to MCU IO port

8

GDO0

Connected to MCU IO port

9

CSN

SPI

10

GND


11

RF Pin

Connected to antenna

N503AS radio module based TI CC1101 transceiver chip. The module supports Ardunio and WMBUS.

N503AS CC1101 transceiver module designed for 433M, 868M and 915MHz. Up to 12dBm output power and down to -116dBm sensitivity.

N503AS module based TI CC1101 transceiver, the module leads out all pins of CC1101 chip, The interface of the module is SPI port and RF pin. SMD package, small size, the module is suitable for SMT production. Rapid development without understanding RF. The module supports Ardunio and WMbus.

N503AS is suitable for ISM band in China, EU and USA.

CC1101 Description

CC1101 is a low-cost sub-1 GHz transceiver designed for very low-power wireless applications. The circuit is mainly intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands at 315, 433, 868, and 915 MHz, but can easily be programmed for operation at other frequencies in the 300-348 MHz, 387-464 MHz and 779-928 MHz bands.

The RF transceiver is integrated with a highly configurable baseband modem. The modem supports various modulation formats and has a configurable data rate up to 600 kbps.

CC1101 provides extensive hardware support for packet handling, data buffering, burst transmissions, clear channel assessment, link quality indication, and wake-on-radio.

The main operating parameters and the 64- byte transmit/receive FIFOs of CC1101 can be controlled via an SPI interface. In a typical system, the CC1101 will be used together with a microcontroller and a few additional passive components.

The CC1190 850-950 MHz range extender [21] can be used with CC1101 in long range applications for improved sensitivity and higher output power.

ISM Frequency supported by N503AS CC1101 module

433M band: 433 MHz to 435 MHz (China, EU)

770M band: 770 MHz to 780 MHz (China)

868M band: 868 MHz to 870 MHz (China, EU, USA)

                      888 MHz to 889 MHz (Australia)

915M band: 902 MHz to 928 MHz (USA)

N503AS Parameter

N503AS RF Interface

Parameter

Frequency

433M, 868M, 915MHz

Output Power

+12dBm

Sensitivity

-116dBm

Symbol Rate

0.6 to 500kbps

Deviation

+/-10kHz

Distance

500m


N503AS Hardware parameters

Value

Size

17 x 16 x 3mm

Antenna Interface

RF pin

Communication Interface

SPI

Package

SMD


N503AS Electrical Parameters

Minimum

Typical

Maximum

Volt

1.8V

3.3V

3.6V

Emission Current


35mA


Receiving Current


18mA


Sleep current


0.2uA


Working Temperature

-30℃


75℃

CC1101 APPLICATIONS

Ultra low-power wireless applications

operating in the 315/433/868/915 MHz ISM/SRD bands

Wireless alarm and security systems

Industrial monitoring and control

Wireless sensor networks

AMR – Automatic Meter Reading

Home and building automation

Wireless MBUS

Arduino

N503AS Typical Application Circuit

N503 typical application circuit



Download N503AS datasheet

Download CC1101 datasheet
